Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Built-in depth44mm
Rated voltage400V
Rated current32A
Surge current capacity0.25kA
Release characteristicB
Pollution degree2
Rated fault current0.3A
Rated insulation voltage Ui-V
Over voltage category-
Leakage current typeAC
Current limiting class1
With interlocking deviceYes
Width in number of modular spacings4
Rated short-circuit breaking capacity according to EN 610096kA
Rated short-circuit breaking capacity according to IEC 60947-210kA
Number of protected poles4
Concurrently switching neutral conductorYes
Suitable for flush-mounted installationYes
Connectable conductor cross section solid-core- - -mm²
Number of poles (total)4
Frequency50 Hz
Degree of protection (IP)IP20
Ambient temperature during operating- - -°C
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Anti-nuisance tripping versionNo
Connectable conductor cross section multi-wired- - -mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

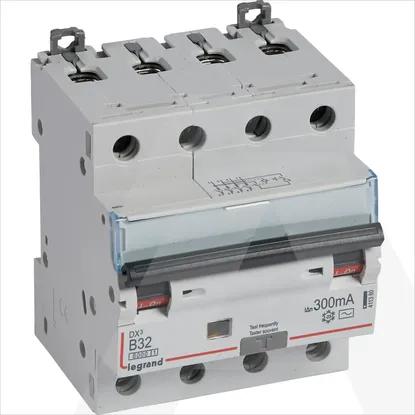

411380 | KZS DX3 4P B32 10KA AC 300MA
