Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Frequency50 Hz
Leakage current typeAC
Rated voltage230V
Ambient temperature during operating-25 - 60°C
Degree of protection (IP)IP20
Mounting methodDIN rail
Connectable conductor cross section solid-core0.75 - 50mm²
With interlocking deviceYes
Built-in depth44mm
Connectable conductor cross section multi-wired0.75 - 35mm²
Rated current16A
Rated insulation voltage Ui250V
Number of poles2
Rated fault current0.01A
Selective protectionNo
Short-circuit breaking capacity (Icw)10kA
Surge current capacity0.25kA
Pollution degree2
Width in number of modular spacings2
Short-time delayed trippingNo
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

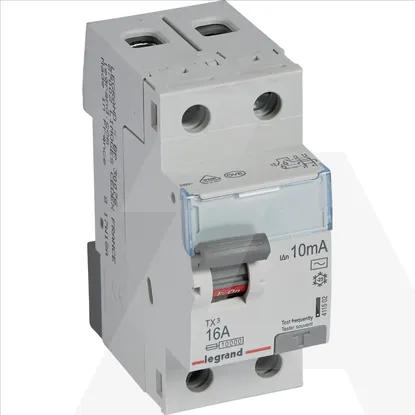

411502 | TX3 FID 2P 16A AC 10MA
