Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated insulation voltage Ui250V
Built-in depth44mm
Mounting methodDIN rail
Surge current capacity0.25kA
Leakage current typeAC
Connectable conductor cross section solid-core0.75 - 50mm²
Connectable conductor cross section multi-wired0.75 - 35mm²
Ambient temperature during operating-25 - 60°C
Pollution degree2
With interlocking deviceYes
Frequency50 Hz
Additional equipment possibleYes
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
Rated current40A
Rated voltage230V
Number of poles2
Rated fault current0.03A
Selective protectionNo
Short-circuit breaking capacity (Icw)10kA
Width in number of modular spacings2
Short-time delayed trippingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

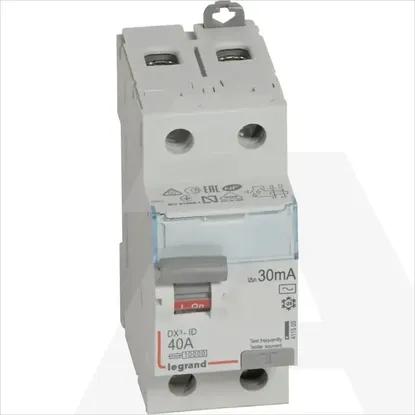

411505 | FID DX3-ID 2P 40A AC 30MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated insulation voltage Ui
250V
Built-in depth
44mm
Mounting method
DIN rail
Surge current capacity
0.25kA
Leakage current type
AC
Connectable conductor cross section solid-core
0.75 .. 50mm²
Connectable conductor cross section multi-wired
0.75 .. 35mm²
Ambient temperature during operating
-25 .. 60°C
Pollution degree
2
With interlocking device
Frequency
50 Hz
Additional equipment possible
Degree of protection (IP)
IP20
Rated impulse withstand voltage Uimp
4kV
Rated current
40A
Rated voltage
230V
Number of poles
2
Rated fault current
0.03A
Selective protection
Short-circuit breaking capacity (Icw)
10kA
Width in number of modular spacings
2
Short-time delayed tripping
