Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated voltage230V
Surge current capacity0.25kA
Selective protectionNo
Number of poles2
Pollution degree2
Degree of protection (IP)IP20
Rated insulation voltage Ui250V
Connectable conductor cross section multi-wired0.75 - 35mm²
Ambient temperature during operating-25 - 60°C
Additional equipment possibleYes
Short-time delayed trippingNo
Rated impulse withstand voltage Uimp4kV
Width in number of modular spacings2
Frequency50 Hz
Mounting methodDIN rail
Built-in depth44mm
Rated fault current30mA
Short-circuit breaking capacity (Icw)10kA
Connectable conductor cross section solid-core0.75 - 50mm²
Leakage current typeAC
Rated current80A
With interlocking deviceYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

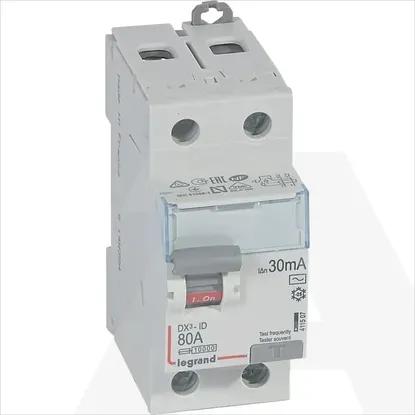

411507 | FID DX3-ID 2P 80A AC 30MA
