Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Built-in depth44mm
Connectable conductor cross section multi-wired0.75 - 35mm²
With interlocking deviceYes
Frequency50 Hz
Connectable conductor cross section solid-core0.75 - 50mm²
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 60°C
Rated insulation voltage Ui250V
Selective protectionNo
Short-time delayed trippingNo
Rated impulse withstand voltage Uimp4kV
Short-circuit breaking capacity (Icw)10kA
Surge current capacity0.25kA
Additional equipment possibleYes
Pollution degree2
Width in number of modular spacings2
Rated current40A
Rated voltage230V
Number of poles2
Rated fault current0.03A
Leakage current typeAC
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

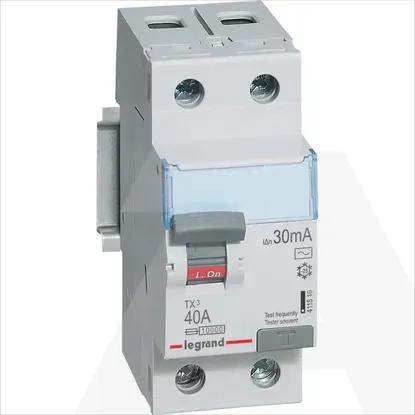

411510 | TX3 FID 2P 40A AC 30MA
