Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Surge current capacity0.25kA
Selective protectionNo
Degree of protection (IP)IP20
Rated insulation voltage Ui250V
Leakage current typeAC
Rated current25A
Rated voltage230V
Pollution degree2
Rated fault current100mA
Number of poles2
Width in number of modular spacings2
Short-circuit breaking capacity (Icw)10kA
Frequency50 Hz
Short-time delayed trippingNo
Connectable conductor cross section solid-core0.75 - 50mm²
Built-in depth44mm
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
With interlocking deviceYes
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

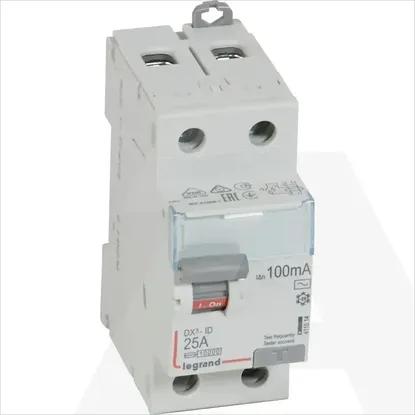

411514 | FID DX3-ID 2P 25A AC 100MA
