Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated current40A
Built-in depth44mm
Rated fault current100mA
Number of poles2
Rated insulation voltage Ui250V
Rated voltage230V
Mounting methodDIN rail
Degree of protection (IP)IP20
Surge current capacity0.25kA
Selective protectionNo
Pollution degree2
Width in number of modular spacings2
Frequency50 Hz
Short-circuit breaking capacity (Icw)10kA
Leakage current typeAC
Connectable conductor cross section multi-wired0.75 - 35mm²
Short-time delayed trippingNo
Connectable conductor cross section solid-core0.75 - 50mm²
With interlocking deviceYes
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

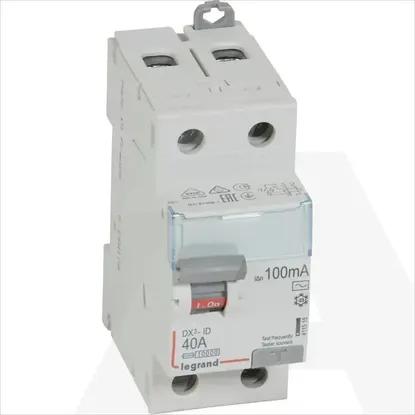

411515 | FID DX3-ID 2P 40A AC 100MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated current
40A
Built-in depth
44mm
Rated fault current
100mA
Number of poles
2
Rated insulation voltage Ui
250V
Rated voltage
230V
Mounting method
DIN rail
Degree of protection (IP)
IP20
Surge current capacity
0.25kA
Selective protection
Pollution degree
2
Width in number of modular spacings
2
Frequency
50 Hz
Short-circuit breaking capacity (Icw)
10kA
Leakage current type
AC
Connectable conductor cross section multi-wired
0.75 .. 35mm²
Short-time delayed tripping
Connectable conductor cross section solid-core
0.75 .. 50mm²
With interlocking device
Additional equipment possible
Ambient temperature during operating
-25 .. 60°C
Rated impulse withstand voltage Uimp
4kV
