Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated voltage230V
Ambient temperature during operating-25 - 60°C
Frequency50 Hz
Built-in depth44mm
Leakage current typeAC
Rated current63A
Rated insulation voltage Ui250V
Degree of protection (IP)IP20
Pollution degree2
Number of poles2
Mounting methodDIN rail
Width in number of modular spacings2
Connectable conductor cross section solid-core0.75 - 50mm²
Rated fault current100mA
Short-time delayed trippingNo
Connectable conductor cross section multi-wired0.75 - 35mm²
Surge current capacity0.25kA
Short-circuit breaking capacity (Icw)10kA
Selective protectionNo
With interlocking deviceYes
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

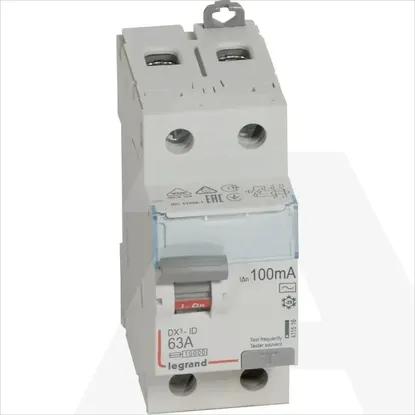

411516 | FID DX3-ID 2P 63A AC 100MA
