Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated insulation voltage Ui250V
Mounting methodDIN rail
Width in number of modular spacings2
Number of poles2
Surge current capacity0.25kA
Rated current80A
Built-in depth44mm
Short-circuit breaking capacity (Icw)10kA
Selective protectionNo
Leakage current typeAC
Rated fault current100mA
Rated voltage230V
Short-time delayed trippingNo
Pollution degree2
Frequency50 Hz
Connectable conductor cross section multi-wired0.75 - 35mm²
With interlocking deviceYes
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core0.75 - 50mm²
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

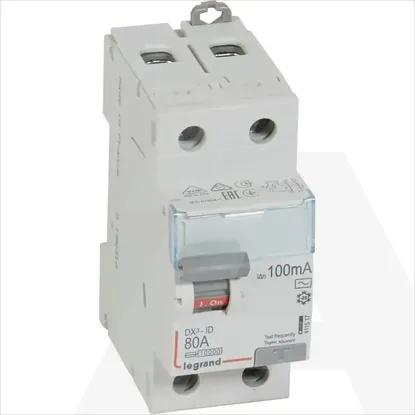

411517 | FID DX3-ID 2P 80A AC 100MA
