Details
- •Circuit breakers and fuses

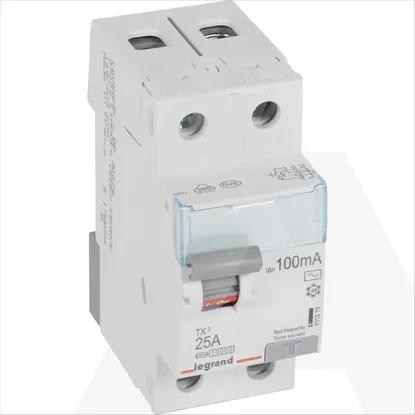

- •Residual current circuit breaker (RCCB)
- •Minimum order quantity: 1 pcs
- •LEGRAND
Technical specifications
Built-in depth44mm
Mounting methodDIN rail
Frequency50 Hz
Connectable conductor cross section solid-core0.75 - 50mm²
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 35mm²
With interlocking deviceYes
Ambient temperature during operating-25 - 60°C
Rated insulation voltage Ui250V
Selective protectionNo
Short-circuit breaking capacity (Icw)10kA
Surge current capacity0.25kA
Pollution degree2
Width in number of modular spacings2
Short-time delayed trippingNo
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Rated current25A
Rated voltage230V
Number of poles2
Rated fault current0.1A
Leakage current typeAC
