Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Surge current capacity0.25kA
Rated voltage230V
Selective protectionNo
Short-circuit breaking capacity (Icw)10kA
Rated current63A
Rated fault current100mA
Number of poles2
Leakage current typeAC
Mounting methodDIN rail
Built-in depth44mm
Rated insulation voltage Ui250V
Pollution degree2
Degree of protection (IP)IP20
Width in number of modular spacings2
Frequency50 Hz
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 35mm²
Short-time delayed trippingNo
With interlocking deviceYes
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core0.75 - 50mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

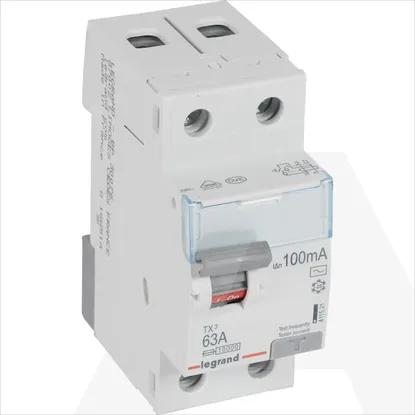

411521 | TX3 FID 2P 63A AC 100MA
