Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Selective protectionNo
Rated fault current300mA
Number of poles2
Built-in depth44mm
Rated insulation voltage Ui250V
Short-circuit breaking capacity (Icw)10kA
Rated current80A
Rated voltage230V
Surge current capacity0.25kA
Pollution degree2
Mounting methodDIN rail
Leakage current typeAC
Short-time delayed trippingNo
Frequency50 Hz
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core0.75 - 50mm²
Connectable conductor cross section multi-wired0.75 - 35mm²
With interlocking deviceYes
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 60°C
Width in number of modular spacings2
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

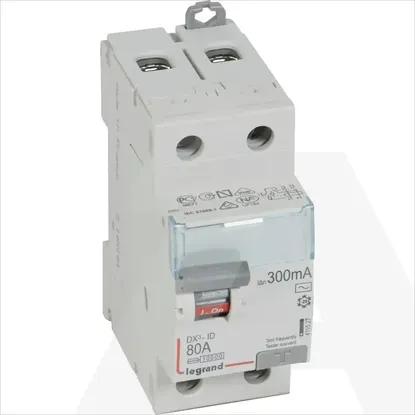

411527 | FID DX3-ID 2P 80A AC 300MA
