Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Built-in depth44mm
Short-circuit breaking capacity (Icw)10kA
Degree of protection (IP)IP20
Leakage current typeAC
Pollution degree2
Short-time delayed trippingNo
Rated current63A
Additional equipment possibleYes
Rated insulation voltage Ui250V
Rated fault current300mA
Connectable conductor cross section solid-core0.75 - 50mm²
Number of poles2
Rated voltage230V
Connectable conductor cross section multi-wired0.75 - 35mm²
With interlocking deviceYes
Selective protectionNo
Frequency50 Hz
Ambient temperature during operating-25 - 60°C
Width in number of modular spacings2
Surge current capacity0.25kA
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

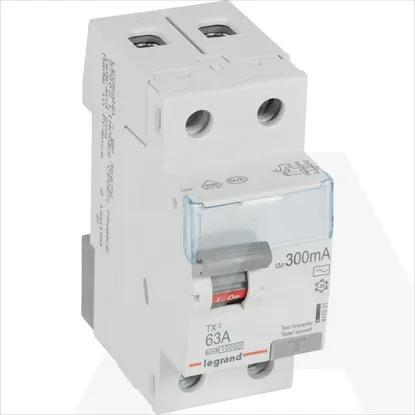

411531 | TX3 FID 2P 63A AC 300MA
