Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Rated current100A
Built-in depth44mm
Rated voltage230V
Rated fault current100mA
Number of poles2
Rated insulation voltage Ui250V
Surge current capacity3kA
Short-circuit breaking capacity (Icw)10kA
Selective protectionYes
Connectable conductor cross section multi-wired0.75 - 35mm²
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp4kV
Short-time delayed trippingYes
Connectable conductor cross section solid-core0.75 - 50mm²
Pollution degree2
Width in number of modular spacings2
Degree of protection (IP)IP20
With interlocking deviceYes
Frequency50 Hz
Additional equipment possibleYes
Leakage current typeAC
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

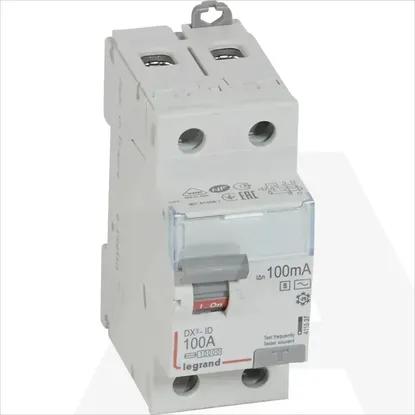

411537 | FID DX3-ID 2P 100A AC-S 100MA
