Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Selective protectionYes
Leakage current typeAC
Number of poles2
Surge current capacity3kA
Mounting methodDIN rail
Short-circuit breaking capacity (Icw)10kA
Rated voltage230V
Rated insulation voltage Ui250V
Rated fault current100mA
Rated current63A
Built-in depth44mm
With interlocking deviceYes
Width in number of modular spacings2
Ambient temperature during operating-25 - 60°C
Short-time delayed trippingYes
Frequency50 Hz
Degree of protection (IP)IP20
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Pollution degree2
Connectable conductor cross section solid-core0.75 - 50mm²
Connectable conductor cross section multi-wired0.75 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

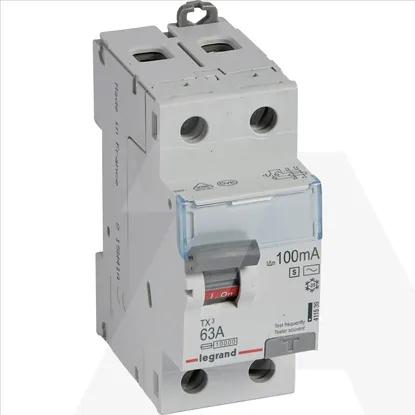

411539 | TX3 FID 2P 63A AC-S 100MA
