Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Surge current capacity3kA
Short-circuit breaking capacity (Icw)10kA
Number of poles2
Selective protectionYes
Rated voltage230V
Leakage current typeAC
Rated insulation voltage Ui250V
Rated current63A
Pollution degree2
Built-in depth44mm
Mounting methodDIN rail
Rated fault current300mA
Frequency50 Hz
Width in number of modular spacings2
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Short-time delayed trippingYes
With interlocking deviceYes
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
Connectable conductor cross section solid-core0.75 - 50mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

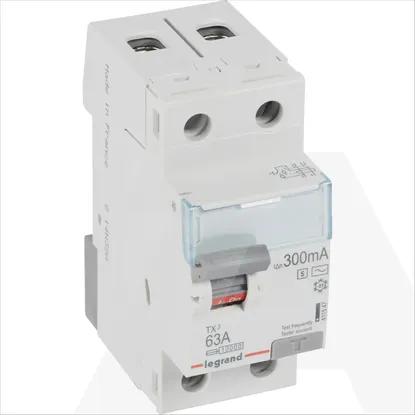

411547 | TX3 FID 2P 63A AC-S 300MA
