Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Built-in depth44mm
Rated current80A
Rated voltage230V
Leakage current typeA
Number of poles2
Rated insulation voltage Ui250V
Rated fault current30mA
Short-time delayed trippingNo
Surge current capacity0.25kA
Width in number of modular spacings2
Short-circuit breaking capacity (Icw)10kA
Selective protectionNo
Connectable conductor cross section solid-core0.75 - 50mm²
Pollution degree2
Frequency50 Hz
With interlocking deviceYes
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 35mm²
Ambient temperature during operating-25 - 60°C
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

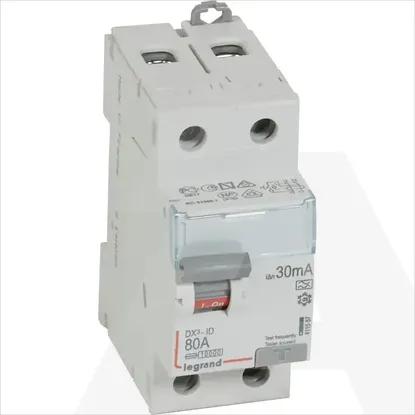

411557 | FID DX3-ID 2P 80A A 30MA
