Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Short-time delayed trippingNo
Built-in depth44mm
Rated current25A
Rated insulation voltage Ui250V
Selective protectionNo
Surge current capacity0.25kA
Number of poles2
Width in number of modular spacings2
Rated voltage230V
Rated fault current30mA
Mounting methodDIN rail
Leakage current typeA
Short-circuit breaking capacity (Icw)10kA
Pollution degree2
Additional equipment possibleYes
With interlocking deviceYes
Connectable conductor cross section multi-wired0.75 - 35mm²
Frequency50 Hz
Connectable conductor cross section solid-core0.75 - 50mm²
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp4kV
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

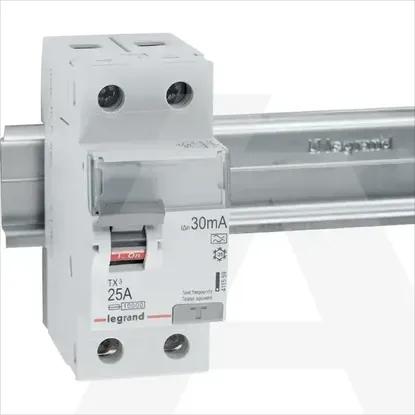

411559 | TX3 FID 2P 25A A 30MA
