Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Mounting methodDIN rail
Degree of protection (IP)IP20
Frequency50 Hz
Connectable conductor cross section multi-wired0.75 - 35mm²
With interlocking deviceYes
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core0.75 - 50mm²
Selective protectionNo
Rated insulation voltage Ui250V
Short-time delayed trippingNo
Rated impulse withstand voltage Uimp4kV
Short-circuit breaking capacity (Icw)10kA
Surge current capacity0.25kA
Additional equipment possibleYes
Width in number of modular spacings2
Pollution degree2
Rated current40A
Rated voltage230V
Number of poles2
Rated fault current0.03A
Leakage current typeA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

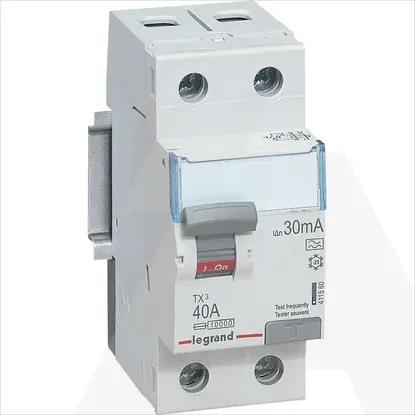

411560 | TX3 FID 2P 40A a 30MA
