Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Built-in depth44mm
Degree of protection (IP)IP20
Selective protectionNo
With interlocking deviceYes
Connectable conductor cross section solid-core0.75 - 50mm²
Frequency50 Hz
Short-time delayed trippingNo
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
Rated insulation voltage Ui250V
Short-circuit breaking capacity (Icw)10kA
Surge current capacity0.25kA
Pollution degree2
Width in number of modular spacings2
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Rated current80A
Rated voltage230V
Number of poles2
Rated fault current0.03A
Leakage current typeA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

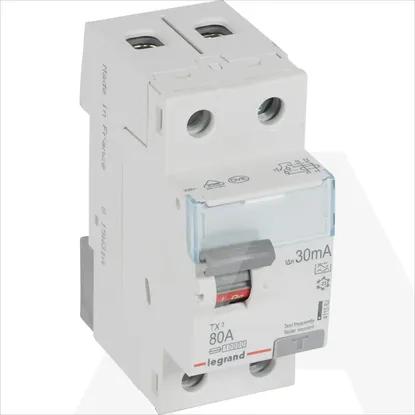

411562 | TX3 FID 2P 80A a 30MA
