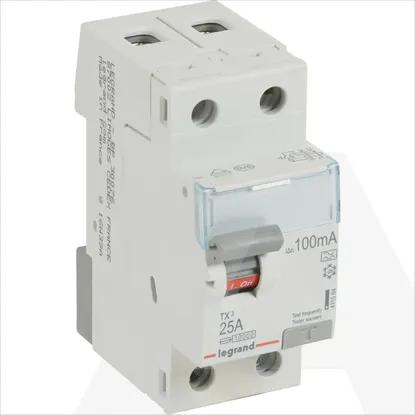

411564 | TX3 FID 2P 25A A 100MA
Code: 1778976
Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Degree of protection (IP)IP20
Mounting methodDIN rail
Number of poles2
Built-in depth44mm
Rated current25A
Rated voltage230V
Width in number of modular spacings2
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
Connectable conductor cross section solid-core0.75 - 50mm²
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui250V
Additional equipment possibleYes
Pollution degree2
Frequency50 Hz
Leakage current typeA
With interlocking deviceYes
Surge current capacity0.25kA
Rated fault current100mA
Short-circuit breaking capacity (Icw)10kA
Selective protectionNo
Short-time delayed trippingNo
