Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Selective protectionNo
Rated fault current300mA
Built-in depth44mm
Rated insulation voltage Ui250V
Rated current25A
Rated voltage230V
Surge current capacity0.25kA
With interlocking deviceYes
Mounting methodDIN rail
Short-circuit breaking capacity (Icw)10kA
Connectable conductor cross section solid-core0.75 - 50mm²
Pollution degree2
Short-time delayed trippingNo
Frequency50 Hz
Width in number of modular spacings2
Degree of protection (IP)IP20
Leakage current typeA
Connectable conductor cross section multi-wired0.75 - 35mm²
Number of poles2
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

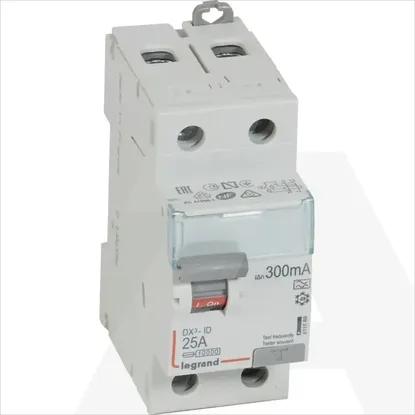

411569 | FID DX3-ID 2P 25A A 300MA
