Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Rated current40A
Built-in depth44mm
Rated insulation voltage Ui250V
Rated voltage230V
Short-circuit breaking capacity (Icw)10kA
Pollution degree2
Selective protectionNo
Rated fault current300mA
Leakage current typeA
Number of poles2
Surge current capacity0.25kA
Degree of protection (IP)IP20
Frequency50 Hz
Short-time delayed trippingNo
Width in number of modular spacings2
Additional equipment possibleYes
With interlocking deviceYes
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
Connectable conductor cross section solid-core0.75 - 50mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

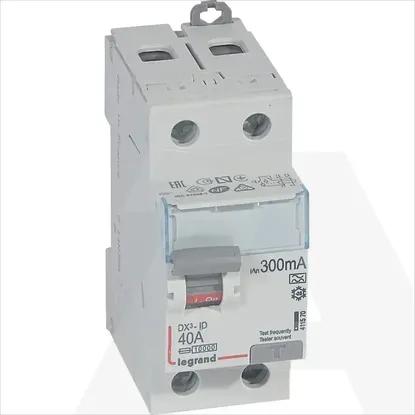

411570 | FID DX3-ID 2P 40A A 300MA
