Details
- •Circuit breakers and fuses

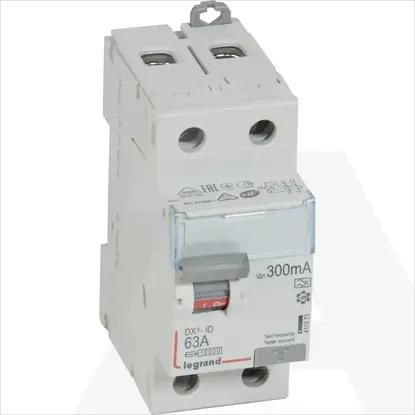

- •Residual current circuit breaker (RCCB)
- •Minimum order quantity: 1 pcs
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Connectable conductor cross section solid-core0.75 - 50mm²
Selective protectionNo
Rated insulation voltage Ui250V
Pollution degree2
Degree of protection (IP)IP20
Short-time delayed trippingNo
Frequency50 Hz
Built-in depth44mm
Surge current capacity0.25kA
With interlocking deviceYes
Connectable conductor cross section multi-wired0.75 - 35mm²
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp4kV
Short-circuit breaking capacity (Icw)10kA
Width in number of modular spacings2
Explosion-proofNo
Additional equipment possibleYes
Rated current63A
Rated voltage230V
Number of poles2
Rated fault current0.3A
Leakage current typeA
