Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Short-time delayed trippingNo
Mounting methodDIN rail
Leakage current typeA
Rated fault current300mA
Connectable conductor cross section multi-wired0.75 - 35mm²
Additional equipment possibleYes
Rated voltage230V
Connectable conductor cross section solid-core0.75 - 50mm²
Frequency50 Hz
Pollution degree2
Rated insulation voltage Ui250V
Built-in depth44mm
Surge current capacity0.25kA
Width in number of modular spacings2
With interlocking deviceYes
Selective protectionNo
Degree of protection (IP)IP20
Short-circuit breaking capacity (Icw)10kA
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 60°C
Number of poles2
Rated current80A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

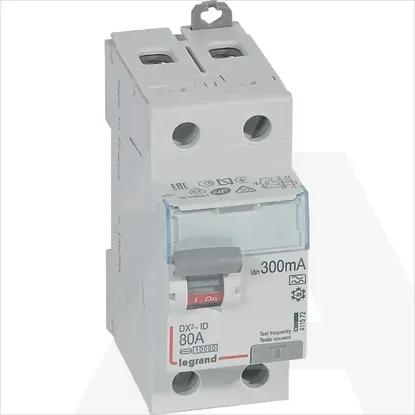

411572 | FID DX3-ID 2P 80A A 300MA
