Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Rated voltage230V
Mounting methodDIN rail
Frequency50 Hz
Degree of protection (IP)IP20
Pollution degree2
Leakage current typeA
Connectable conductor cross section multi-wired0.75 - 35mm²
Connectable conductor cross section solid-core0.75 - 50mm²
With interlocking deviceYes
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
Rated insulation voltage Ui250V
Number of poles2
Short-time delayed trippingNo
Explosion-proofNo
Rated impulse withstand voltage Uimp4kV
Selective protectionNo
Rated fault current0.3A
Short-circuit breaking capacity (Icw)10kA
Surge current capacity0.25kA
Width in number of modular spacings2
Rated current25A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

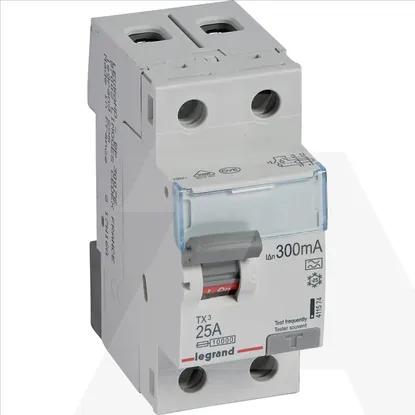

411574 | TX3 FID 2P 25A A 300MA
