Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated current63A
Built-in depth44mm
Mounting methodDIN rail
Selective protectionNo
Rated voltage230V
Rated fault current300mA
Pollution degree2
Leakage current typeA
Width in number of modular spacings2
Number of poles2
Ambient temperature during operating-25 - 60°C
Short-circuit breaking capacity (Icw)10kA
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 50mm²
With interlocking deviceYes
Frequency50 Hz
Short-time delayed trippingNo
Rated impulse withstand voltage Uimp4kV
Surge current capacity0.25kA
Rated insulation voltage Ui250V
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

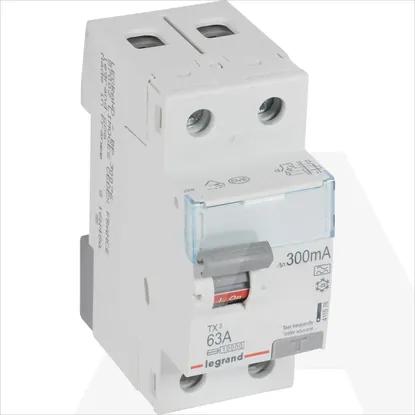

411576 | TX3 FID 2P 63A A 300MA
