Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Selective protectionNo
Built-in depth44mm
Number of poles2
Short-circuit breaking capacity (Icw)10kA
Surge current capacity0.25kA
Mounting methodDIN rail
Rated insulation voltage Ui250V
Rated voltage230V
Leakage current typeA
Rated fault current300mA
Rated current80A
Pollution degree2
Degree of protection (IP)IP20
Frequency50 Hz
Width in number of modular spacings2
With interlocking deviceYes
Short-time delayed trippingNo
Connectable conductor cross section solid-core0.75 - 50mm²
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

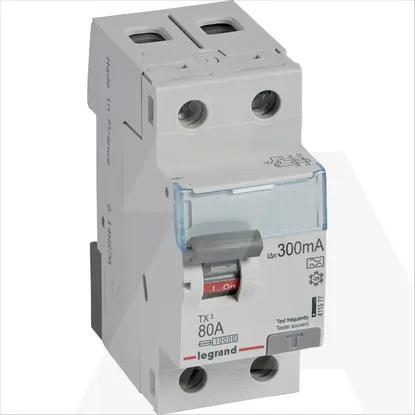

411577 | TX3 FID 2P 80A A 300MA
