Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Leakage current typeA
Rated voltage230V
With interlocking deviceYes
Built-in depth44mm
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
Connectable conductor cross section solid-core0.75 - 50mm²
Degree of protection (IP)IP20
Frequency50 Hz
Number of poles2
Rated current25A
Rated fault current0.5A
Rated insulation voltage Ui250V
Rated impulse withstand voltage Uimp4kV
Short-time delayed trippingNo
Short-circuit breaking capacity (Icw)10kA
Surge current capacity0.25kA
Width in number of modular spacings2
Additional equipment possibleYes
Explosion-proofNo
Selective protectionNo
Pollution degree2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

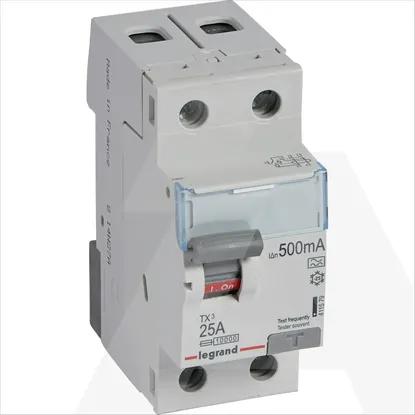

411579 | TX3 FID 2P 25A A 500MA
