Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Mounting methodDIN rail
Rated voltage230V
Connectable conductor cross section multi-wired0.75 - 35mm²
Connectable conductor cross section solid-core0.75 - 50mm²
Frequency50 Hz
Ambient temperature during operating-25 - 60°C
Degree of protection (IP)IP20
Short-time delayed trippingNo
Leakage current typeA
With interlocking deviceYes
Rated current40A
Rated insulation voltage Ui250V
Number of poles2
Rated fault current0.5A
Selective protectionNo
Short-circuit breaking capacity (Icw)10kA
Surge current capacity0.25kA
Pollution degree2
Width in number of modular spacings2
Explosion-proofNo
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

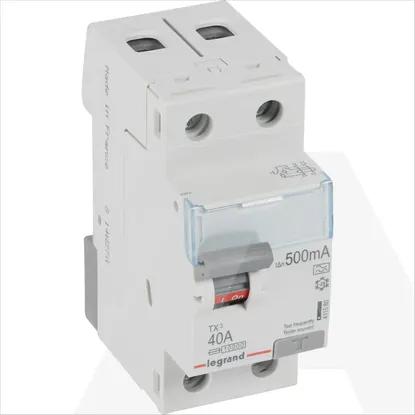

411580 | TX3 FID 2P 40A A 500MA
