Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Rated current40A
Selective protectionNo
Leakage current typeF
Built-in depth44mm
Rated voltage230V
Rated fault current30mA
Rated insulation voltage Ui250V
Number of poles2
Short-circuit breaking capacity (Icw)10kA
Frequency50 Hz
Connectable conductor cross section multi-wired0.75 - 35mm²
Rated impulse withstand voltage Uimp4kV
Pollution degree2
Connectable conductor cross section solid-core0.75 - 50mm²
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 60°C
With interlocking deviceYes
Surge current capacity3kA
Width in number of modular spacings2
Additional equipment possibleYes
Short-time delayed trippingYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

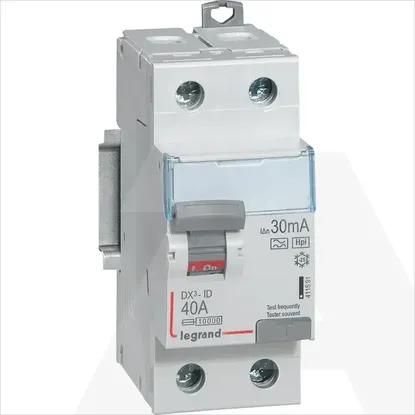

411591 | FID DX3-ID 2P 40A HPI 30MA
