Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Mounting methodDIN rail
Connectable conductor cross section multi-wired0.75 - 35mm²
Connectable conductor cross section solid-core0.75 - 50mm²
Rated insulation voltage Ui250V
Surge current capacity3kA
Rated impulse withstand voltage Uimp4kV
Short-time delayed trippingYes
With interlocking deviceYes
Pollution degree2
Leakage current typeF
Degree of protection (IP)IP20
Frequency50 Hz
Ambient temperature during operating-25 - 60°C
Rated current63A
Rated voltage230V
Number of poles2
Rated fault current0.03A
Selective protectionNo
Short-circuit breaking capacity (Icw)10kA
Width in number of modular spacings2
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

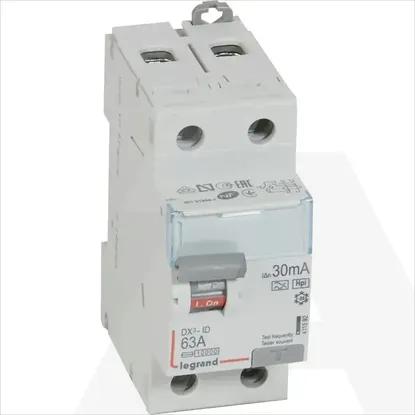

411592 | FID DX3-ID 2P 63A HPI 30MA
