Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Built-in depth44mm
Leakage current typeF
Short-time delayed trippingYes
Degree of protection (IP)IP20
Frequency50 Hz
Pollution degree2
Ambient temperature during operating-25 - 60°C
With interlocking deviceYes
Connectable conductor cross section multi-wired0.75 - 35mm²
Connectable conductor cross section solid-core0.75 - 50mm²
Number of poles2
Rated voltage230V
Rated current40A
Rated fault current0.03A
Rated insulation voltage Ui250V
Rated impulse withstand voltage Uimp4kV
Selective protectionNo
Surge current capacity3kA
Short-circuit breaking capacity (Icw)10kA
Additional equipment possibleYes
Width in number of modular spacings2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

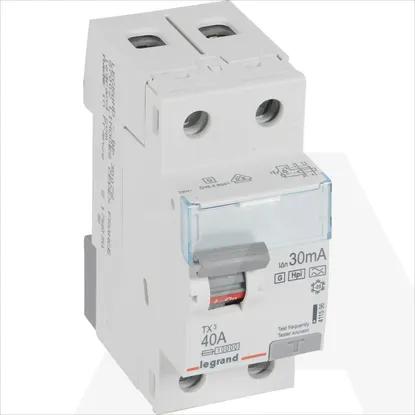

411596 | TX3 FID 2P 40A HPI 30MA
