Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated insulation voltage Ui250V
Rated current63A
Built-in depth44mm
Mounting methodDIN rail
Rated voltage230V
Width in number of modular spacings2
Short-time delayed trippingYes
Frequency50 Hz
Degree of protection (IP)IP20
Short-circuit breaking capacity (Icw)10kA
Surge current capacity3kA
Pollution degree2
Additional equipment possibleYes
Selective protectionNo
Number of poles2
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core0.75 - 50mm²
Connectable conductor cross section multi-wired0.75 - 35mm²
With interlocking deviceYes
Rated fault current30mA
Leakage current typeF
Ambient temperature during operating-25 - 60°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

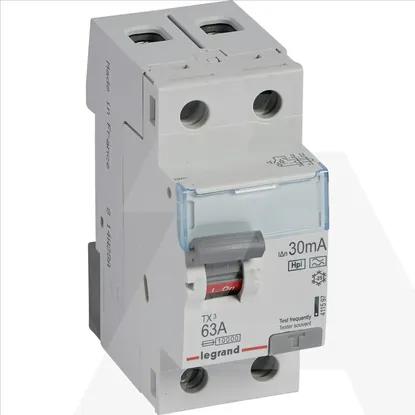

411597 | TX3 FID 2P 63A HPI 30MA
