Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Rated insulation voltage Ui500V
Rated voltage400V
Built-in depth44mm
Rated current40A
Leakage current typeAC
Short-circuit breaking capacity (Icw)10kA
Number of poles4
Selective protectionNo
Rated fault current300mA
Degree of protection (IP)IP20
With interlocking deviceYes
Pollution degree2
Connectable conductor cross section solid-core0.75 - 50mm²
Width in number of modular spacings4
Short-time delayed trippingNo
Connectable conductor cross section multi-wired0.75 - 35mm²
Frequency50 Hz
Ambient temperature during operating-25 - 60°C
Surge current capacity0.25kA
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

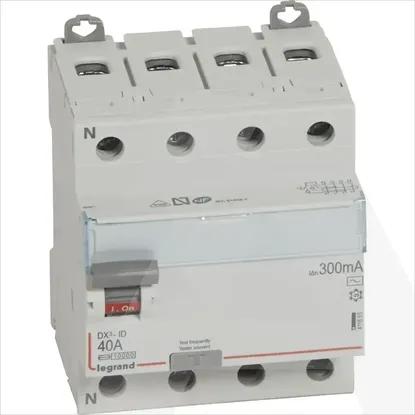

411665 | DX3-ID 4PL 40A AC 300MA
