Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Leakage current typeAC
Rated insulation voltage Ui500V
Built-in depth44mm
Selective protectionNo
Number of poles4
Surge current capacity0.25kA
Rated current40A
Short-circuit breaking capacity (Icw)10kA
Pollution degree2
Rated fault current30mA
Width in number of modular spacings4
Rated voltage400V
Mounting methodDIN rail
Connectable conductor cross section solid-core0.75 - 50mm²
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 60°C
With interlocking deviceYes
Additional equipment possibleYes
Frequency50 Hz
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0.75 - 35mm²
Short-time delayed trippingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

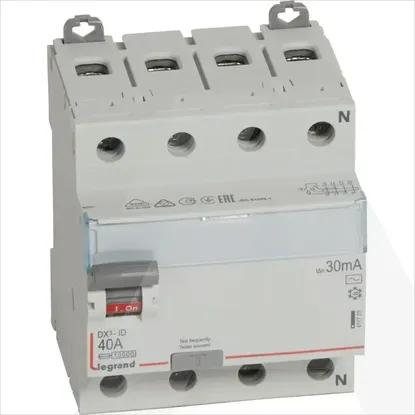

411703 | FID DX3-ID 4PD 40A AC 30MA
