Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Built-in depth44mm
Short-circuit breaking capacity (Icw)10kA
Leakage current typeAC
Connectable conductor cross section solid-core0.75 - 50mm²
Frequency50 Hz
Connectable conductor cross section multi-wired0.75 - 35mm²
With interlocking deviceYes
Degree of protection (IP)IP20
Rated current80A
Rated voltage400V
Rated insulation voltage Ui500V
Number of poles4
Rated fault current0.03A
Selective protectionNo
Surge current capacity0.25kA
Pollution degree2
Width in number of modular spacings4
Short-time delayed trippingNo
Ambient temperature during operating-25 - 60°C
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

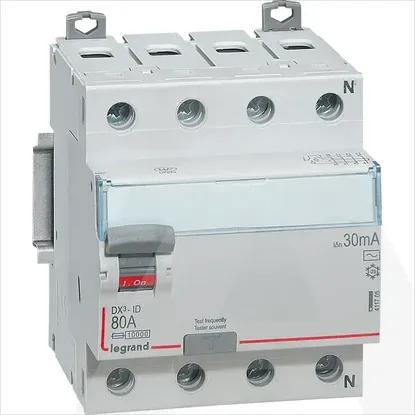

411705 | FID DX3-ID 4PD 80A AC 30MA
