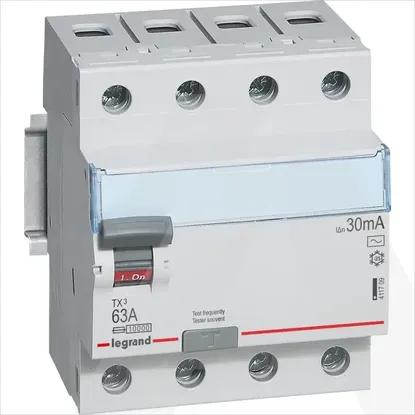

411709 | TX3 FID 4PD 63A AC 30MA
Code: 1779013
Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Degree of protection (IP)IP20
Number of poles4
Mounting methodDIN rail
Built-in depth44mm
Rated voltage400V
Rated current63A
Width in number of modular spacings4
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
Connectable conductor cross section solid-core0.75 - 50mm²
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui500V
Additional equipment possibleYes
Pollution degree2
Frequency50 Hz
Surge current capacity0.25kA
Leakage current typeAC
With interlocking deviceYes
Rated fault current30mA
Short-circuit breaking capacity (Icw)10kA
Selective protectionNo
Short-time delayed trippingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
