Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Leakage current typeAC
Number of poles4
Selective protectionNo
Rated insulation voltage Ui500V
With interlocking deviceYes
Short-time delayed trippingNo
Short-circuit breaking capacity (Icw)10kA
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 50mm²
Connectable conductor cross section multi-wired0.75 - 35mm²
Rated voltage400V
Degree of protection (IP)IP20
Frequency50 Hz
Width in number of modular spacings4
Rated fault current100mA
Surge current capacity0.25kA
Pollution degree2
Ambient temperature during operating-25 - 60°C
Rated current25A
Rated impulse withstand voltage Uimp4kV
Built-in depth44mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

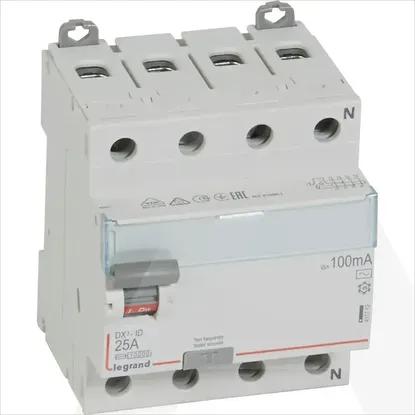

411712 | FID DX3-ID 4PD 25A AC 100MA
