Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated current80A
Mounting methodDIN rail
Built-in depth44mm
Rated voltage400V
Rated fault current100mA
Rated insulation voltage Ui500V
Number of poles4
Leakage current typeAC
Short-circuit breaking capacity (Icw)10kA
Surge current capacity0.25kA
Selective protectionNo
Pollution degree2
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 35mm²
Short-time delayed trippingNo
Width in number of modular spacings4
With interlocking deviceYes
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core0.75 - 50mm²
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Frequency50 Hz
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

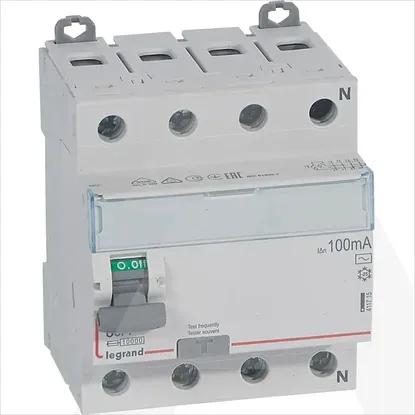

411715 | FID DX3-ID 4PD 80A AC 100MA
