Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Leakage current typeAC
Width in number of modular spacings4
Pollution degree2
Built-in depth44mm
Rated fault current100mA
Degree of protection (IP)IP20
Rated insulation voltage Ui500V
Selective protectionNo
Short-time delayed trippingNo
Frequency50 Hz
Rated current25A
Number of poles4
Surge current capacity0.25kA
Short-circuit breaking capacity (Icw)10kA
Rated voltage400V
Connectable conductor cross section solid-core0.75 - 50mm²
Connectable conductor cross section multi-wired0.75 - 35mm²
Rated impulse withstand voltage Uimp4kV
With interlocking deviceYes
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

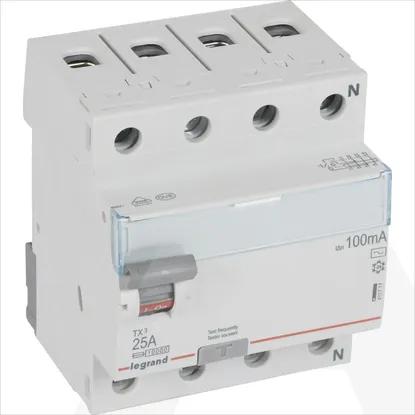

411717 | TX3 FID 4PD 25A AC 100MA
