Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Mounting methodDIN rail
Rated current40A
Rated voltage400V
Rated fault current300mA
Leakage current typeAC
Rated insulation voltage Ui500V
Pollution degree2
Width in number of modular spacings4
Additional equipment possibleYes
Degree of protection (IP)IP20
Short-time delayed trippingNo
Connectable conductor cross section solid-core0.75 - 50mm²
Connectable conductor cross section multi-wired0.75 - 35mm²
Frequency50 Hz
Surge current capacity0.25kA
Selective protectionNo
Number of poles4
With interlocking deviceYes
Short-circuit breaking capacity (Icw)10kA
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

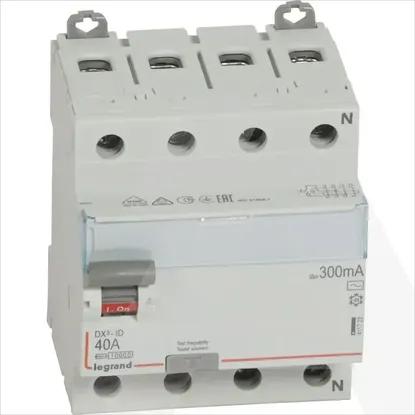

411723 | FID DX3-ID 4PD 40A AC 300MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Built-in depth
44mm
Mounting method
DIN rail
Rated current
40A
Rated voltage
400V
Rated fault current
300mA
Leakage current type
AC
Rated insulation voltage Ui
500V
Pollution degree
2
Width in number of modular spacings
4
Additional equipment possible
Degree of protection (IP)
IP20
Short-time delayed tripping
Connectable conductor cross section solid-core
0.75 .. 50mm²
Connectable conductor cross section multi-wired
0.75 .. 35mm²
Frequency
50 Hz
Surge current capacity
0.25kA
Selective protection
Number of poles
4
With interlocking device
Short-circuit breaking capacity (Icw)
10kA
Ambient temperature during operating
-25 .. 60°C
Rated impulse withstand voltage Uimp
4kV
