Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Mounting methodDIN rail
Leakage current typeAC
Short-circuit breaking capacity (Icw)10kA
Short-time delayed trippingNo
Connectable conductor cross section multi-wired0.75 - 35mm²
Frequency50 Hz
Selective protectionNo
Connectable conductor cross section solid-core0.75 - 50mm²
With interlocking deviceYes
Degree of protection (IP)IP20
Rated current63A
Rated voltage400V
Rated insulation voltage Ui500V
Number of poles4
Rated fault current0.3A
Surge current capacity0.25kA
Pollution degree2
Width in number of modular spacings4
Ambient temperature during operating-25 - 60°C
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

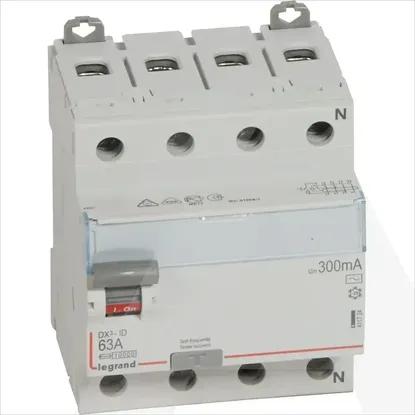

411724 | FID DX3-ID 4PD 63A AC 300MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Built-in depth
44mm
Mounting method
DIN rail
Leakage current type
AC
Short-circuit breaking capacity (Icw)
10kA
Short-time delayed tripping
Connectable conductor cross section multi-wired
0.75 .. 35mm²
Frequency
50 Hz
Selective protection
Connectable conductor cross section solid-core
0.75 .. 50mm²
With interlocking device
Degree of protection (IP)
IP20
Rated current
63A
Rated voltage
400V
Rated insulation voltage Ui
500V
Number of poles
4
Rated fault current
0.3A
Surge current capacity
0.25kA
Pollution degree
2
Width in number of modular spacings
4
Ambient temperature during operating
-25 .. 60°C
Additional equipment possible
Rated impulse withstand voltage Uimp
4kV
