Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Selective protectionNo
Pollution degree2
Short-circuit breaking capacity (Icw)10kA
Built-in depth44mm
Rated fault current300mA
Short-time delayed trippingNo
Rated current80A
Rated voltage400V
Leakage current typeAC
Number of poles4
Width in number of modular spacings4
Rated insulation voltage Ui500V
Surge current capacity0.25kA
Frequency50 Hz
With interlocking deviceYes
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 35mm²
Connectable conductor cross section solid-core0.75 - 50mm²
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

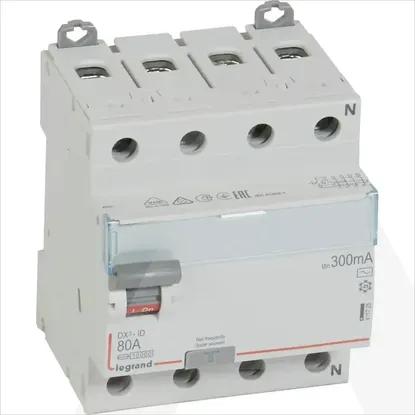

411725 | FID DX3-ID 4PD 80A AC 300MA
