Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Rated insulation voltage Ui500V
Rated current40A
Built-in depth44mm
Number of poles4
Leakage current typeAC
Selective protectionNo
Short-circuit breaking capacity (Icw)10kA
Surge current capacity0.25kA
Rated fault current300mA
Rated voltage400V
Pollution degree2
Width in number of modular spacings4
Connectable conductor cross section solid-core0.75 - 50mm²
Short-time delayed trippingNo
Frequency50 Hz
Connectable conductor cross section multi-wired0.75 - 35mm²
Degree of protection (IP)IP20
Additional equipment possibleYes
With interlocking deviceYes
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

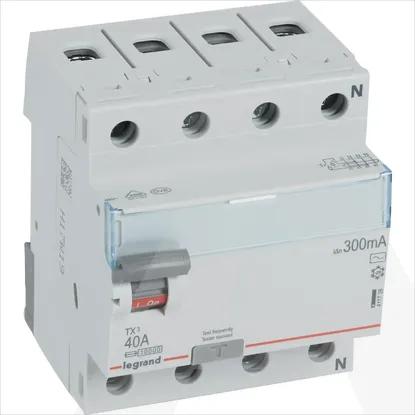

411728 | TX3 FID 4PD 40A AC 300MA
