Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Leakage current typeAC
Mounting methodDIN rail
Rated fault current300mA
Rated current80A
Rated insulation voltage Ui500V
Selective protectionNo
Number of poles4
Rated voltage400V
Built-in depth44mm
Width in number of modular spacings4
Short-circuit breaking capacity (Icw)10kA
Surge current capacity0.25kA
Pollution degree2
Short-time delayed trippingNo
Connectable conductor cross section solid-core0.75 - 50mm²
With interlocking deviceYes
Frequency50 Hz
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0.75 - 35mm²
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

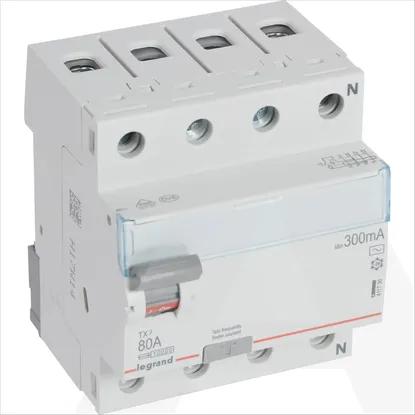

411730 | TX3 FID 4PD 80A AC 300MA
