Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated voltage400V
Built-in depth44mm
Mounting methodDIN rail
Rated current80A
Number of poles4
Rated insulation voltage Ui500V
Short-time delayed trippingNo
Width in number of modular spacings4
Selective protectionNo
Rated fault current500mA
Frequency50 Hz
Surge current capacity0.25kA
Leakage current typeAC
Pollution degree2
Short-circuit breaking capacity (Icw)10kA
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 35mm²
Rated impulse withstand voltage Uimp4kV
With interlocking deviceYes
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 50mm²
Ambient temperature during operating-25 - 60°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

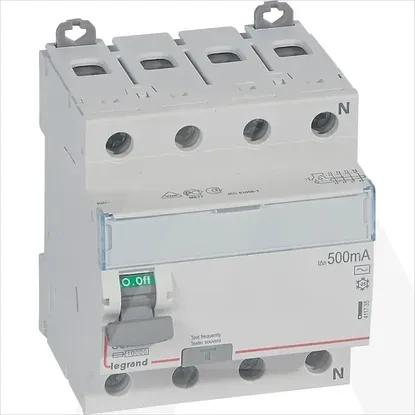

411735 | FID DX3-ID 4PD 80A AC 500MA
