Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Number of poles4
Rated voltage400V
Rated insulation voltage Ui500V
Mounting methodDIN rail
Rated current63A
Rated fault current500mA
Leakage current typeAC
With interlocking deviceYes
Surge current capacity0.25kA
Short-time delayed trippingNo
Connectable conductor cross section multi-wired0.75 - 35mm²
Width in number of modular spacings4
Degree of protection (IP)IP20
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core0.75 - 50mm²
Frequency50 Hz
Pollution degree2
Selective protectionNo
Ambient temperature during operating-25 - 60°C
Short-circuit breaking capacity (Icw)10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

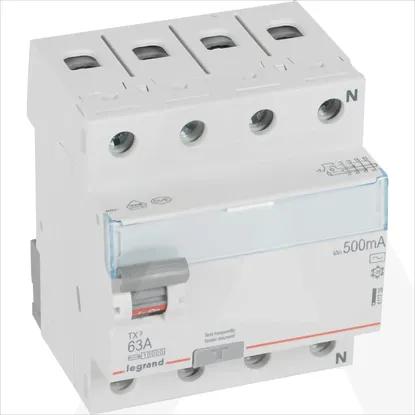

411739 | TX3 FID 4PD 63A AC 500MA
