Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Selective protectionYes
Number of poles4
Leakage current typeAC
Rated fault current300mA
Rated current40A
Rated voltage400V
Mounting methodDIN rail
Rated insulation voltage Ui500V
Frequency50 Hz
Surge current capacity3kA
Degree of protection (IP)IP20
Width in number of modular spacings4
Short-time delayed trippingYes
Short-circuit breaking capacity (Icw)10kA
Pollution degree2
Rated impulse withstand voltage Uimp4kV
With interlocking deviceYes
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core0.75 - 50mm²
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

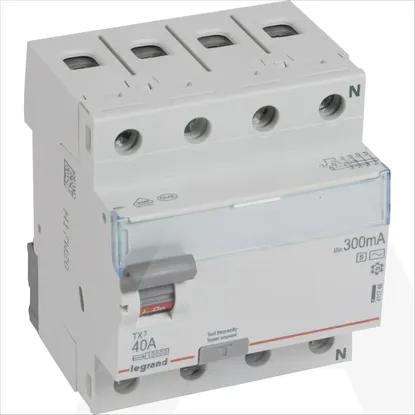

411748 | TX3 FID 4PD 40A AC-S 300MA
