Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Mounting methodDIN rail
Leakage current typeA
Rated insulation voltage Ui500V
Connectable conductor cross section solid-core0.75 - 50mm²
Width in number of modular spacings4
Pollution degree2
Degree of protection (IP)IP20
Frequency50 Hz
Connectable conductor cross section multi-wired0.75 - 35mm²
With interlocking deviceYes
Number of poles4
Rated current25A
Rated fault current0.03A
Rated voltage400V
Rated impulse withstand voltage Uimp4kV
Short-circuit breaking capacity (Icw)10kA
Surge current capacity0.25kA
Ambient temperature during operating-25 - 60°C
Additional equipment possibleYes
Short-time delayed trippingNo
Selective protectionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

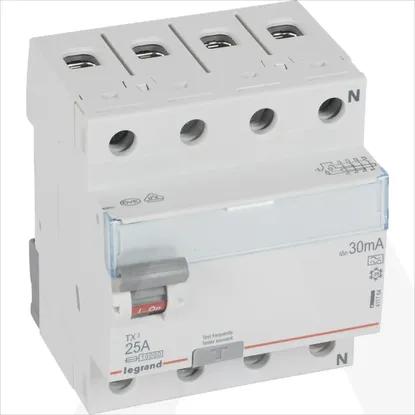

411764 | TX3 FID 4PD 25A A 30MA
